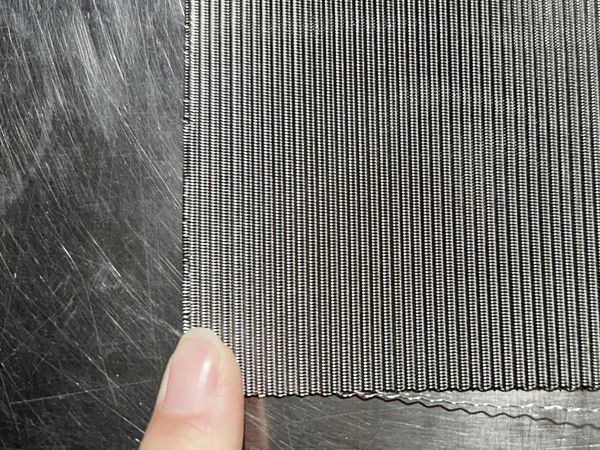

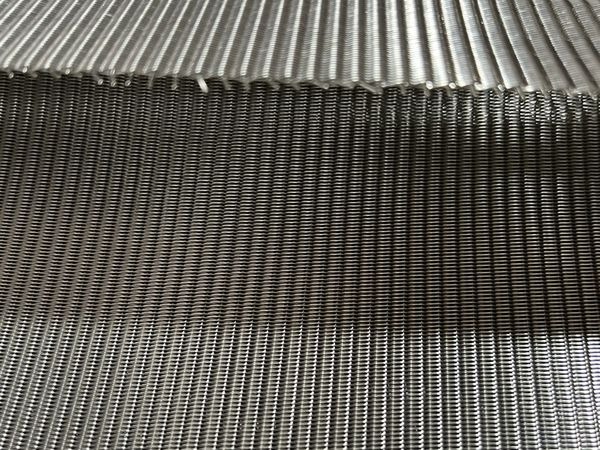

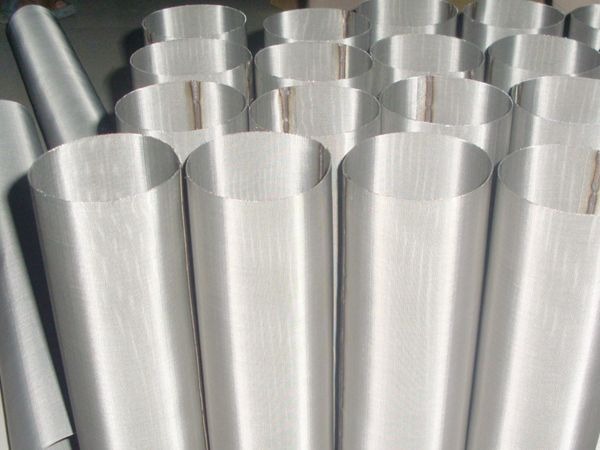

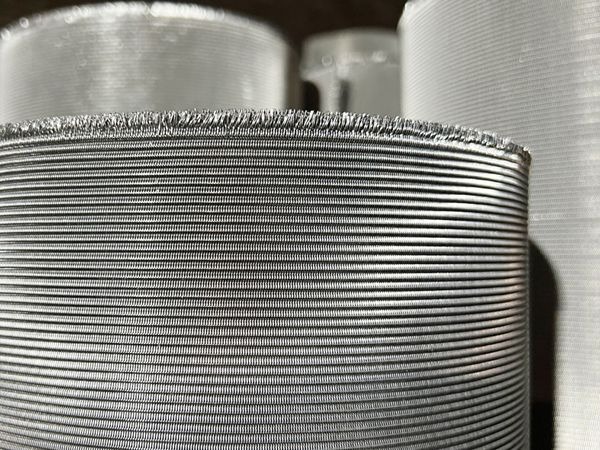

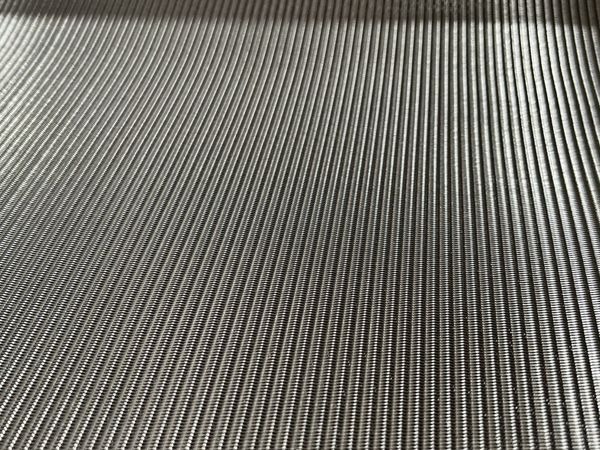

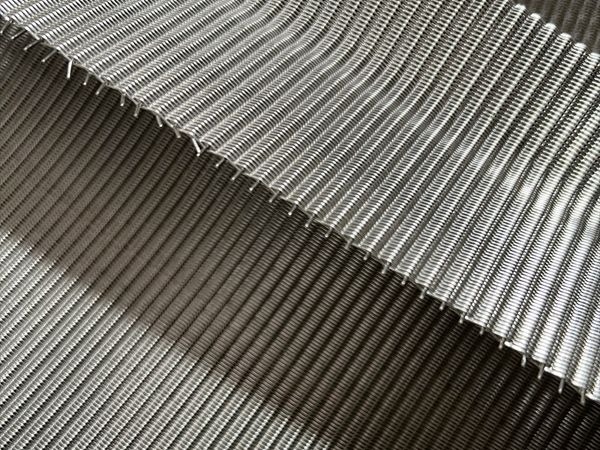

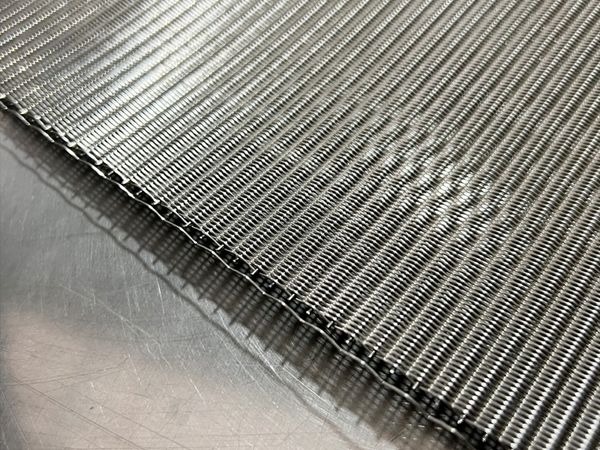

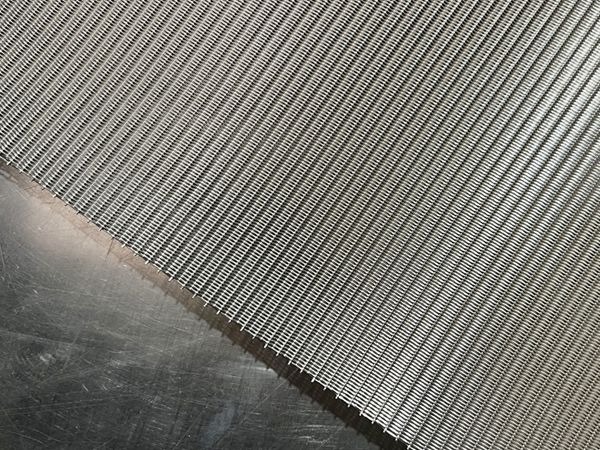

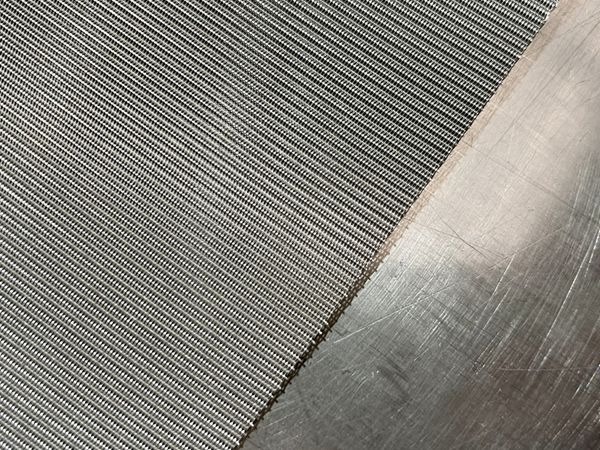

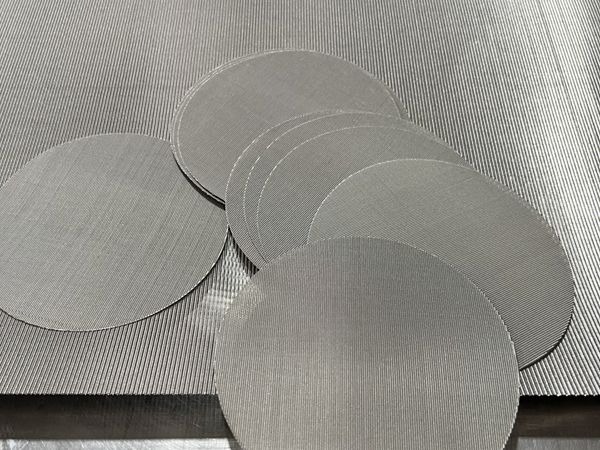

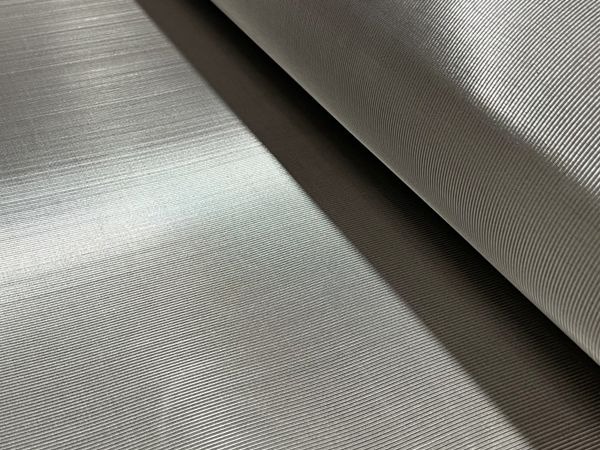

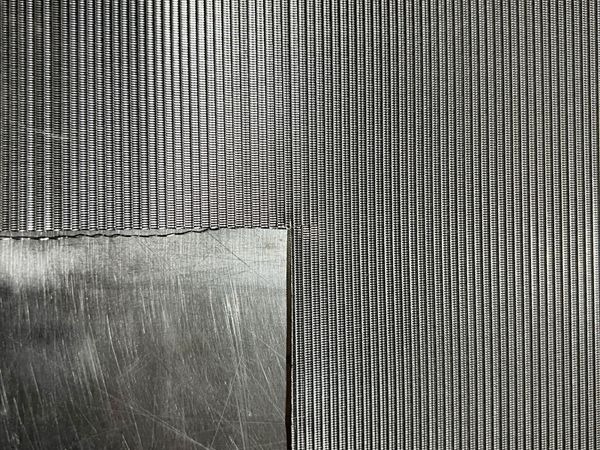

Stainless Steel Wire Mesh Plain Dutch Weave Type

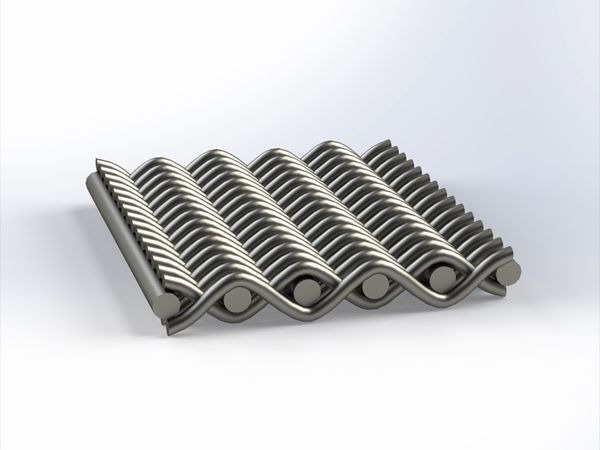

Like plain weave, the wire in plain dutch weave is interwoven but the warp wires are thicker than the shute wires. These are arranged very close together to form a zero-mesh structure. This generates a weave that has high inherent stability with a relatively small mesh size. Plain dutch weave has excellent filtration qualities and can be easily cleaned of filtrate deposits and residual dirt.

View PDF

Stainless Steel Plain Dutch Weave Wire Mesh
Mesh Wire Diameter D   Porosity % Thickness Weight Porosity Retention
Per Inch Inch mm Inch mm Lbs/sq.ft. Kg/m2 Micron µm
Warp x Shute Warp Shute Warp Shute     Norminal
8x85 0.014 0.013 0.360 0.330 66 0.039 0.99 0.53 2.57 310
10x56 0.028 0.020 0.710 0.500 58 0.077 1.95 0.97 4.76 305
10x70 0.024 0.016 0.600 0.400 61 0.056 1.42 0.76 3.70 300
10x88 0.020 0.013 0.500 0.330 63 0.033 0.83 0.62 3.02 265
12x64 0.024 0.017 0.600 0.420 57 0.057 1.45 0.80 3.90 250
12x95 0.020 0.012 0.500 0.300 63 0.033 0.84 0.59 2.89 220
14x88 0.020 0.013 0.500 0.320 48 0.045 1.14 0.64 3.13 250
14x110 0.014 0.010 0.360 0.250 62 0.033 0.85 0.45 2.22 220
16x80 0.017 0.015 0.430 0.380 57 0.041 1.05 0.62 3.05 260
16x120 0.014 0.009 0.360 0.240 62 0.034 0.86 0.46 2.25 150
20x150 0.010 0.007 0.250 0.180 63 0.024 0.61 0.31 1.53 120
24x125 (D) 0.010 0.009 0.250 0.230 45 0.026 0.65 0.50 2.44 100
24x110 0.013 0.009 0.320 0.240 49 0.031 0.80 0.45 2.20 105
24x110 0.014 0.010 0.360 0.260 60 0.028 0.71 0.55 2.70 60
28x160 (D) 0.010 0.007 0.250 0.180 44 0.028 0.70 0.44 2.13 60
30x150 (D) 0.009 0.008 0.230 0.195 43 0.024 0.60 0.48 2.33 90
30x150 0.009 0.007 0.230 0.180 59 0.019 0.50 0.33 1.60 110
40x200 0.007 0.006 0.180 0.140 58 0.016 0.40 0.27 1.30 80
50x250 0.006 0.004 0.140 0.112 61 0.014 0.36 0.21 1.03 55
50x250 (D) 0.004 0.004 0.112 0.112 61 0.013 0.33 0.19 0.95 50
50x280 0.006 0.004 0.140 0.100 61 0.013 0.33 0.19 0.95 50
80x300 0.005 0.004 0.125 0.090 51 0.012 0.30 0.19 0.92 45
80x400 0.005 0.003 0.125 0.071 55 0.010 0.25 0.17 0.82 40
120x650 (D) 0.002 0.002 0.050 0.042 43 0.005 0.12 0.09 0.44 35
Above is reference list examples of Standard Stainless Steel Plain Dutch Weave Wire Mesh (many more available)
