Copper wire mesh
Copper wire mesh is a metal mesh product made from copper and its alloys (such as brass and phosphorus copper) through weaving processes such as plain weave or twill weave. It possesses characteristics such as conductivity, thermal conductivity, non-magnetic properties, wear resistance, and corrosion resistance. Its specifications are mainly defined by parameters such as mesh size (the number of holes per inch), wire diameter (the diameter of the copper wire), aperture (the side length of the mesh hole), and width (the width of the mesh). The specification range varies depending on the material and weaving method.
| Copper Wire Mesh Specification List | ||||||
| Raw Material | Primary Components | Common Mesh (Mesh/Inch) | Wire Diameter (mm) |
Opening Area (mm) | Width (m) |
Characteristics & Applications |

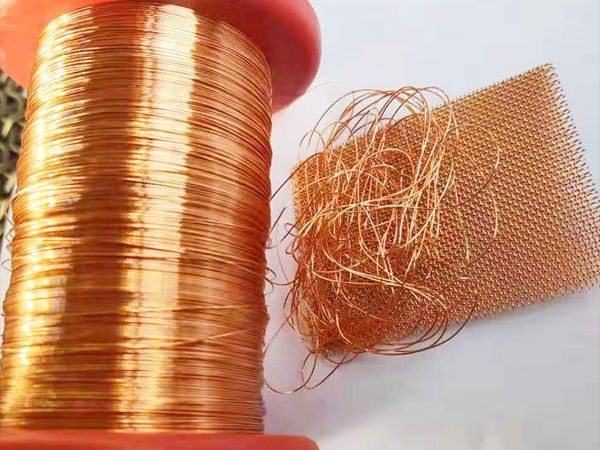

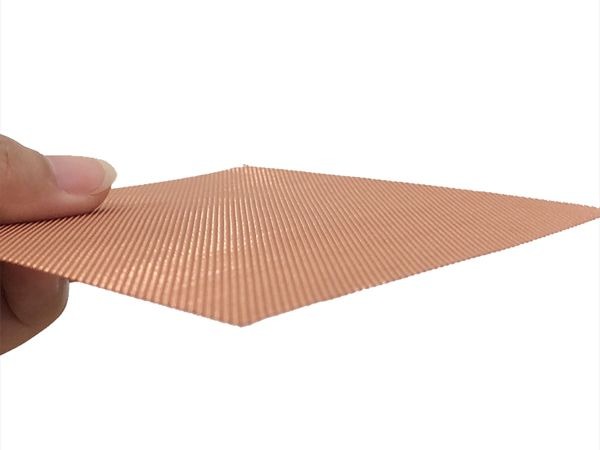

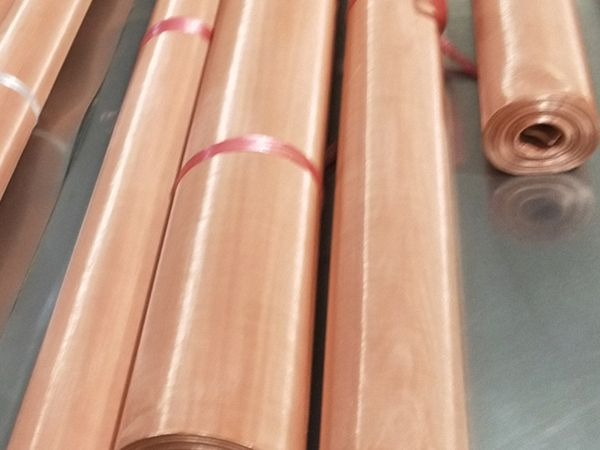

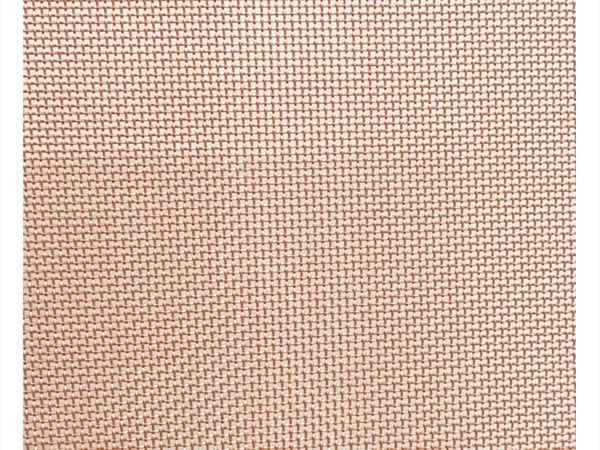

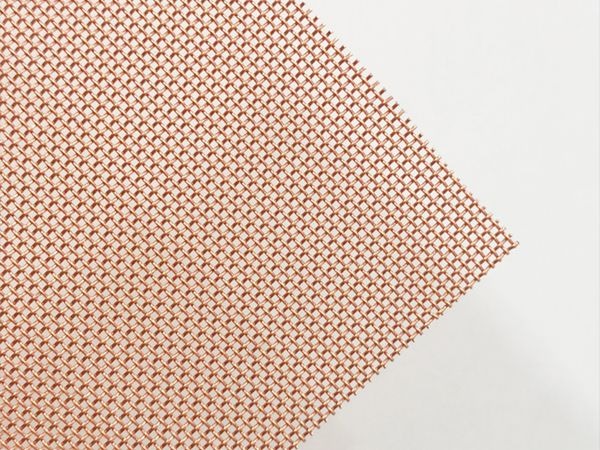

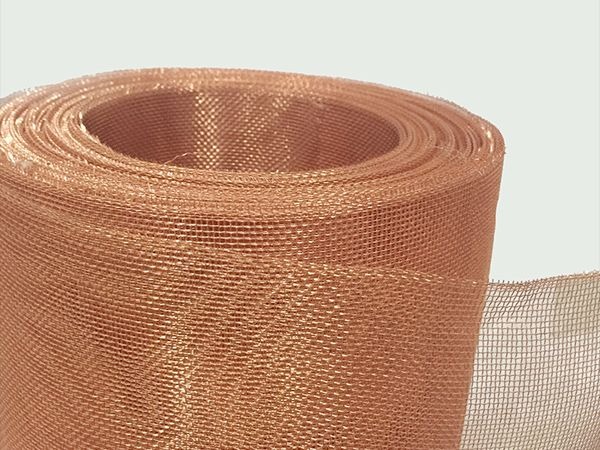

| Red copper | Pure copper (Cu ≥ 99.9%) |
5 - 350 | 0.012 - 0.711 | 0.020 - 3.522 | 0.76 - 1.5 | It boasts excellent conductivity and thermal conductivity, is non-magnetic, and has good sound insulation properties. It is commonly used in electronic shielding, electromagnetic interference protection, electronic displays, wall sound insulation, and filtering of electron beams. |

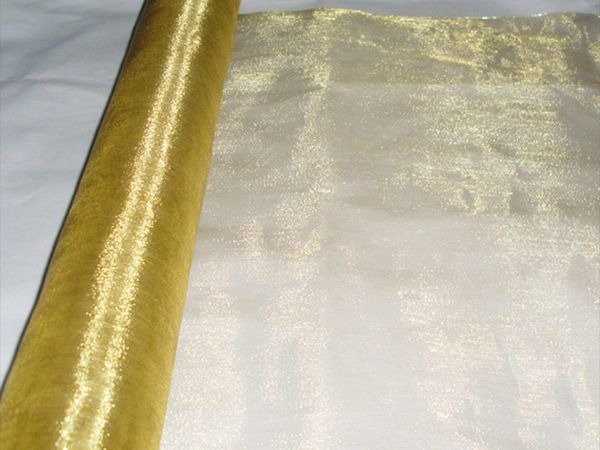

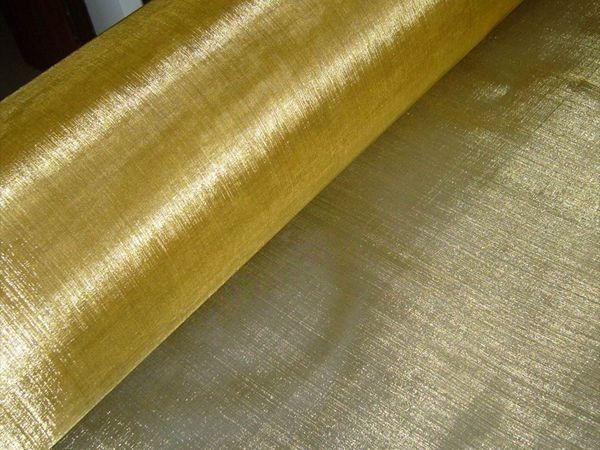

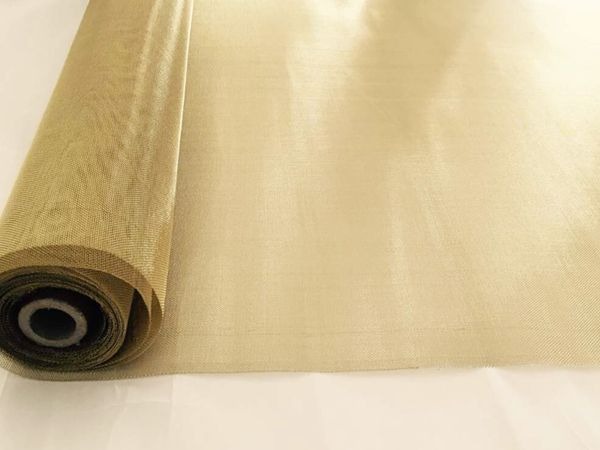

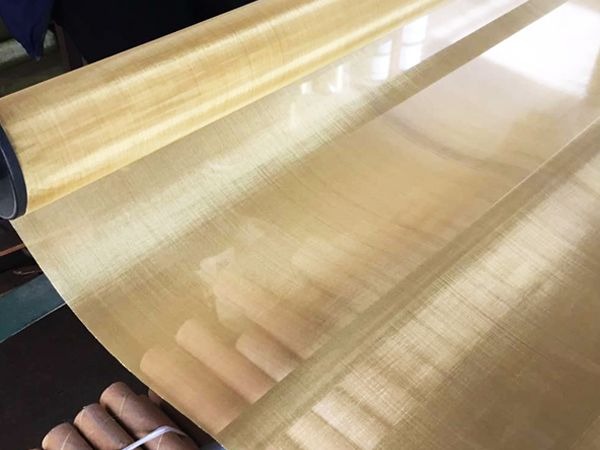

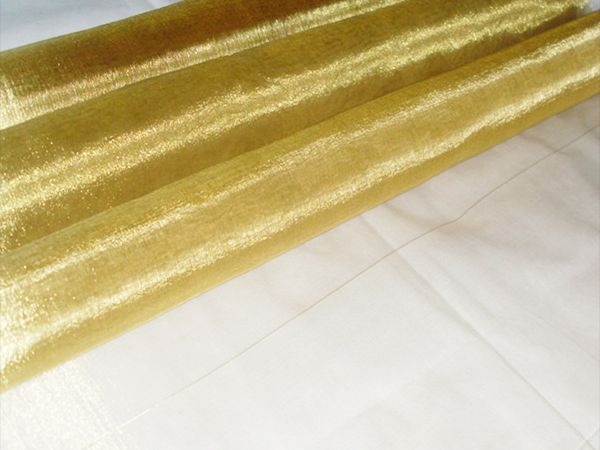

| Brass | Copper-zinc alloy (Cu 65%-80%) | 1 - 200 | 0.035 - 0.55 | 0.04 - 2.6 | 0.6 - 1.5 | It is resistant to corrosion and wear, with good ductility. It is widely used in industrial screening, filtering liquids/gases, chemical mist eliminators, and the paper industry (such as 60-70 mesh for newsprint and 90-100 mesh for typing paper) |
| Phosphor bronze | Tin bronze (Cu 85%-90%, Sn 5%-15%) |
5 - 400 | 0.011 - 0.5 | 0.011 - 2.0 | 0.6 - 1.5 | Non-magnetic, wear-resistant, acid and alkali resistant, and with good extensibility. Suitable for screening and filtering high-precision powders, ceramics, and glass, as well as demanding industrial environments. |
| The above are the specifications for regular copper wire mesh, special specifications are available upon customization. | ||||||
| Normal Specificaton list of copper wire mesh | ||||
| Mesh (Inch) |
Wire Gauge (SWG) |
Wire Dia (mm) | Opening (mm) |
Common Applications |
| 6 | 22 | 0.711 | 3.522 | Coarse particle screening |
| 8 | 23 | 0.61 | 2.565 | Rough filtration |
| 10 | 25 | 0.508 | 2.032 | General filtration |
| 20 | 30 | 0.315 | 0.955 | Medium particle filtration |
| 40 | 36 | 0.193 | 0.442 | Fine powder filtration, chemical industry |
| 60 | 37 | 0.173 | 0.25 | Papermaking, printing, and fine filtration |
| 80 | 40 | 0.122 | 0.196 | High-precision filtering, electronic shielding |
| 100 | 42 | 0.122 | 0.152 | High-precision filtering, electronic shielding |
| 120 | 44 | 0.081 | 0.131 | High-precision filtration, electromagnetic shielding |
| 150 | 46 | 0.061 | 0.108 | High-precision electromagnetic shielding |
| 200 | 47 | 0.051 | 0.076 | Ultra-fine filtration, high-end electromagnetic shielding |
| 250 | 48 | 0.041 | 0.056 | Ultra-fine filtration, high-end electromagnetic shielding |
| 300 | 49 | 0.033 | 0.044 | High-end electronic shielding, nanoscale filtration |
| 350 | 50 | 0.028 | 0.036 | Ultra-high precision filtration, special industrial applications |
| The above are the specifications for regular copper wire mesh, special specifications are available upon customization. | ||||
Inquiry for Our Product
Hebei Shuolong Metal Products Co., Ltd.
E-mail:
sales@slmetalmesh.com Tel: +86-318-7750268, +86-318-7982881
Mobile: +86-13833861993 WhatsApp: +86-13833861993
When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
