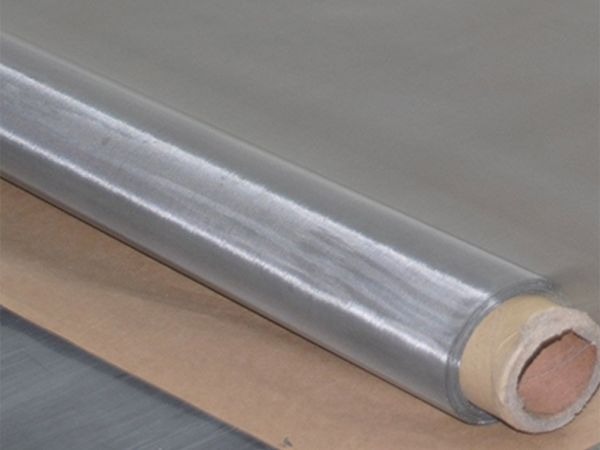

Stainless Steel Wire Mesh Plain Weave Type

Wire cloth with a mesh count the same in both directions. Plain Square Mesh is the most common weave with the same number and diameter of warp and shute wires woven in a simple over and under pattern. Creates maximum weaving stability and the same mesh count in both directions.

View PDF View PDF

Stainless Steel Plain Weave Wire Mesh
Item Mesh Wire Diameter Opening Size Weight
(inch) (mm) (inch) (mm) kgs/M2
20 20X20 0.0200 0.5080 0.0300 0.7620 2.5806
20 20X20 0.0160 0.4060 0.0340 0.8640 1.6484
24 24X24 0.0140 0.3560 0.0277 0.7023 1.5208
30 30X30 0.0130 0.3300 0.0203 0.5167 1.6335
30 30X30 0.0120 0.3050 0.0213 0.5417 1.3954
30 30X30 0.0090 0.2290 0.0243 0.6177 0.7866
35 35X35 0.0110 0.2790 0.0176 0.4467 1.3622
40 40X40 0.0100 0.2540 0.0150 0.3810 1.2903
50 50X50 0.0090 0.2290 0.0110 0.2790 1.3110
50 50X50 0.0080 0.2030 0.0120 0.3050 1.0302
60 60X60 0.0075 0.1910 0.0092 0.2323 1.0944
60 60X60 0.0070 0.1780 0.0097 0.2453 0.9505
70 70X70 0.0065 0.1650 0.0078 0.1979 0.9529
80 80X80 0.0065 0.1650 0.0060 0.1525 1.0890
80 80X80 0.0055 0.1400 0.0070 0.1775 0.7840
90 90X90 0.0050 0.1270 0.0061 0.1552 0.7258
100 100X100 0.0045 0.1140 0.0055 0.1400 0.6498
100 100X100 0.0040 0.1020 0.0060 0.1520 0.5202
100 100X100 0.0035 0.0890 0.0065 0.1650 0.3961
110 110X110 0.0040 0.1016 0.0051 0.1293 0.5677
120 120X120 0.0037 0.0940 0.0046 0.1177 0.5302
150 150X150 0.0026 0.0660 0.0041 0.1033 0.3267
160 160X160 0.0025 0.0635 0.0038 0.0953 0.3226
180 180X180 0.0023 0.0584 0.0033 0.0827 0.3070
200 200X200 0.0021 0.0533 0.0029 0.0737 0.2841
250 250X250 0.0016 0.0406 0.0024 0.0610 0.2060
270 270X270 0.0016 0.0406 0.0021 0.0535 0.2225
300 300X300 0.0051 0.0381 -0.0018 0.0466 0.2177
325 325X325 0.0014 0.0356 0.0017 0.0426 0.2059
400 400X400 0.001 0.0254 0.0015 0.0381 0.1290
500 500X500 0.001 0.0254 0.0010 0.0254 0.1613
635 635X635 0.0008 0.0203 0.0008 0.0197 0.1308
Above is reference list examples of Standard Squre Mesh (many more available)
