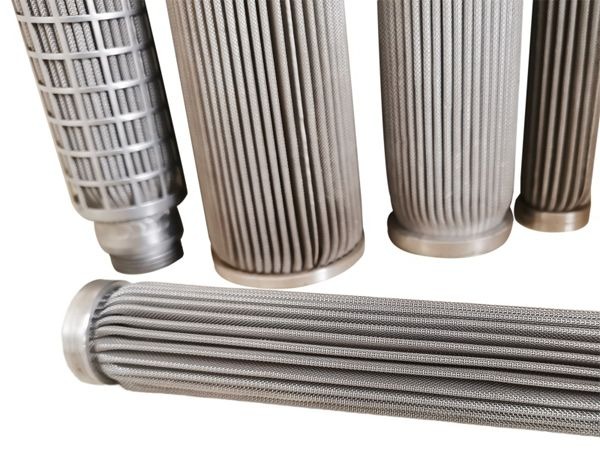

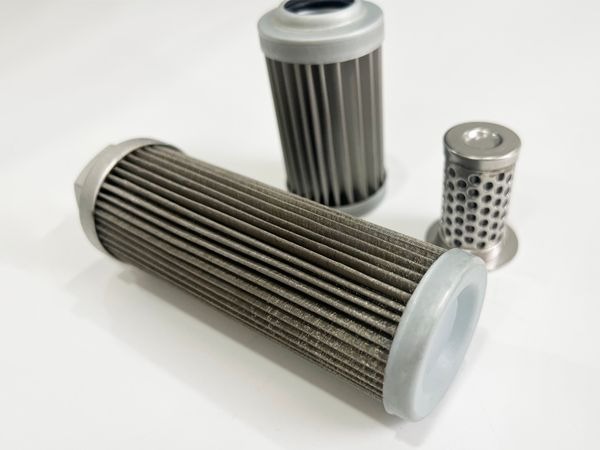

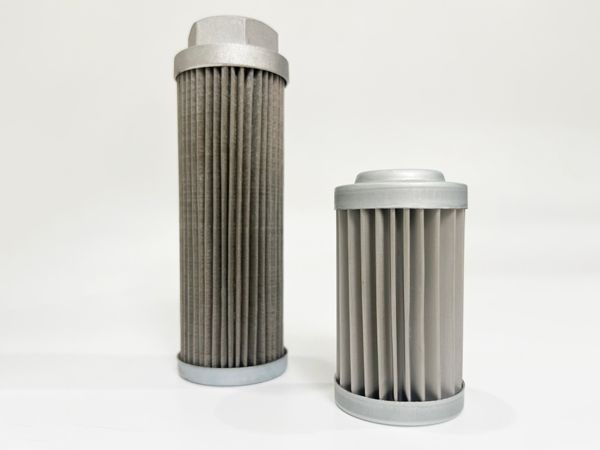

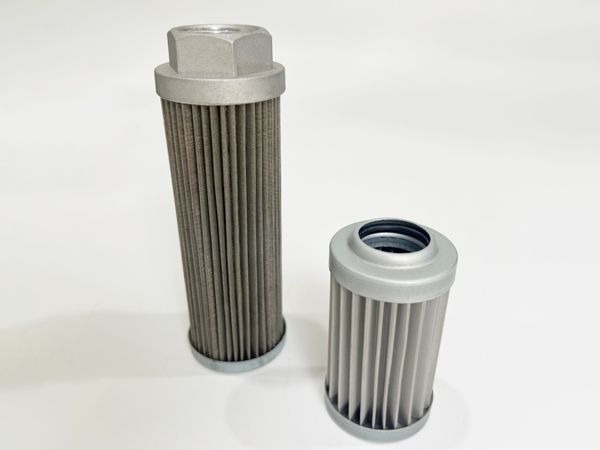

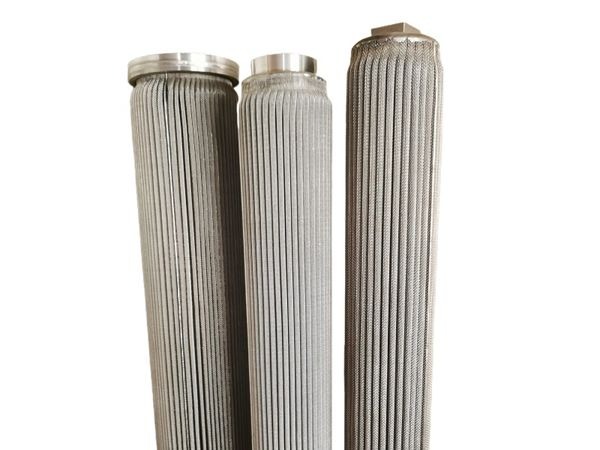

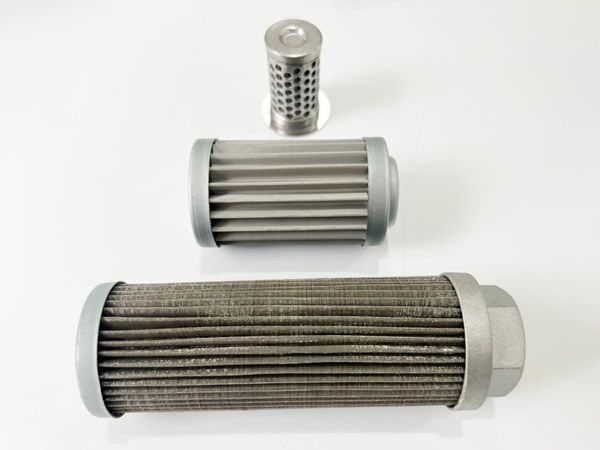

Stainless Steel Pleated filter Element

Pleated filters can be used almost anywhere where high filtration performance is required in a small installation space. The folded mesh increases the filter surface many times over. We supply the ready-made meshes bordered according to your requirements. Pleated filters can be used for a large variety of filter media, so they are to be found in a wide range of applications such as process technology, chemicals and pharmaceuticals, automotive and many more besides.

Stainless steel pleated filters elements are mainly made of 304 or 316L stainless steel, it is durable in structure and offer large dirty holding capacity with a minimal pressure drop. These filter cartridges are typically pleated or cylindrical (wrapped), with a lightweight core and a support ring. Industrial process cartridges overcome the temperature and compatibility limitations of cellulose or synthetic fiber cartridges by being manufactured of stainless steel using crimping and welding, with no brazing or epoxy bonding used.

Applications

steam filtration, chemical, food and beverage, pharmaceutical industries, etc.

SSP = Stainless Steel Pleated Element

Micron rating range: 2, 5, 10, 20, 40, 100

SSPF = Stainless Steel felt Pleated Element

Micron rating range: 3, 5, 7, 10, 25, 40, 60

RAW MATERIAL OF FILTER ELEMENTS

DIGITAL PRECISION MACHINING ENSURES STABLE PERFORMANCE

From raw material to finished product, precision manufacturing is the core control point:

• Mesh sheets are laser-cut to ensure aperture integrity without thermal deformation.
• Automatic pleating equipment maintains consistent pleat spacing and depth, preventing flow blockage and excessive local pressure drop.
• Inner and outer supports use CNC welding and full-position TIG welding for higher fatigue strength and fully sealed weld quality.
• Maintains structural stability under high pressure, corrosion, and high temperature conditions, ensuring long-term filtration accuracy.

RAW MATERIAL ADVANTAGES

• Materials: 304, 316L, 201, 403, as well as titanium and nickel
• Types: Single-layer, multi-layer, sintered, composite, knitted mesh, wedge wire, and specially treated wire media
• Raw Material Testing: Spectral chemical analysis, tensile strength testing, metallographic microscope/laser measurement for wire diameter and aperture accuracy, gas flow testing.
• Surface Layer: Special passivation treatment ensures superior corrosion resistance and long service life.

100 BUBBLE POINT & PRESSURE INTEGRITY TESTING

Each filter element undergoes individual bubble point, pressure resistance, and seal integrity testing before leaving the factory, eliminating internal leaks or premature collapse failures.

INDUSTRIAL GRADE REUSABILITY & CLEANING STABILITY

Stainless steel filter elements/media maintain structural stability during repeated ultrasonic cleaning, backwashing, and chemical cleaning — unlike inferior elements that deform or lose micron-level accuracy after several regeneration cycles.

PRODUCTS & PRODUCTION

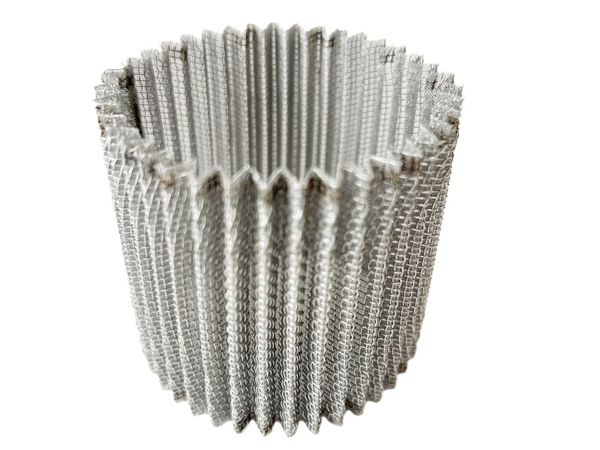

FILTER MEDIA

Stainless steel wire mesh has good acid resistance, alkali resistance, heat resistance and wear resistance.

In addition to common mesh sizes, we can also provide 635×4500 mesh with the highest absolute filtration value up to 1 micron.

WELDING DETAILS

Beautiful surface without scratches. The mesh is even with no dark lines. Beautiful welding. One-time molding.

END TYPE

There are five main end types:

• Double open end with grommet type of seal
• Single open end with female NPT connection
• Single open end with grommet type seal
• Single open end with 222 O-ring
• Single open end with male NPT connection

PACKAGING & DRAWING CUSTOMIZATION

ShuoLong Industrial offers full customization for product drawings and packaging. We support laser marking, screen printing, custom color-printed cartons, and tailored designs to ensure safe transportation and professional branding. Packaging can be fully customized upon request.
